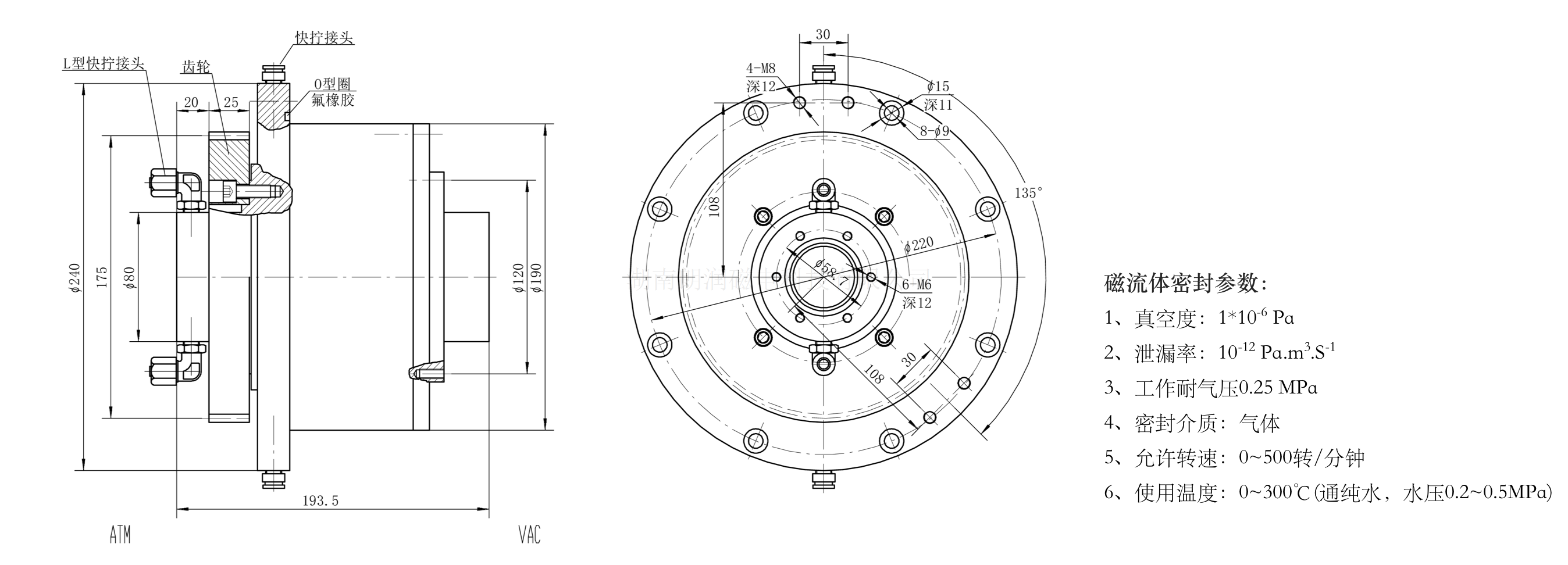

Transmission magnetic fluid for continuous coated wire, flange connection method.
The twin shaft is a relatively independent rotating structure, the outer shaft is equipped with gear transmission, and the inner shaft is a through-hole through-hole. Connect the rotation mechanism of different units.
It is suitable for vacuum sealing in high temperature environment and medium and low speeds.
When working, keep the pure water cooling state, and the water pressure is controlled at 0.2-0.5MPa.
